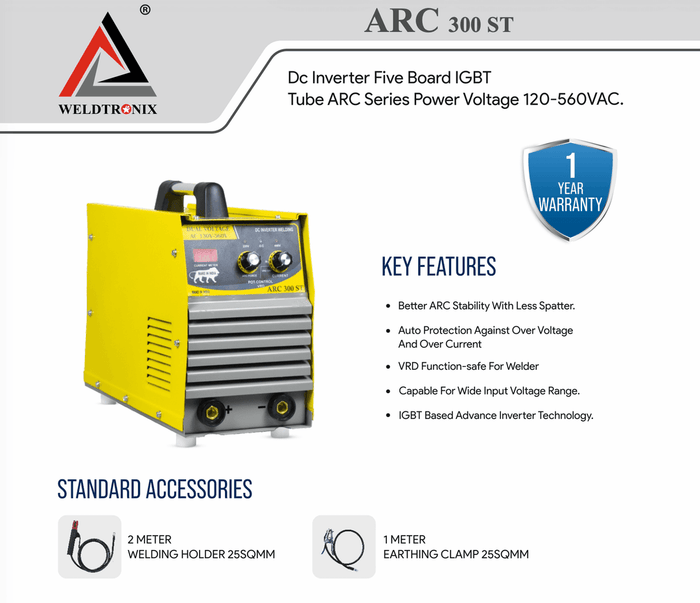

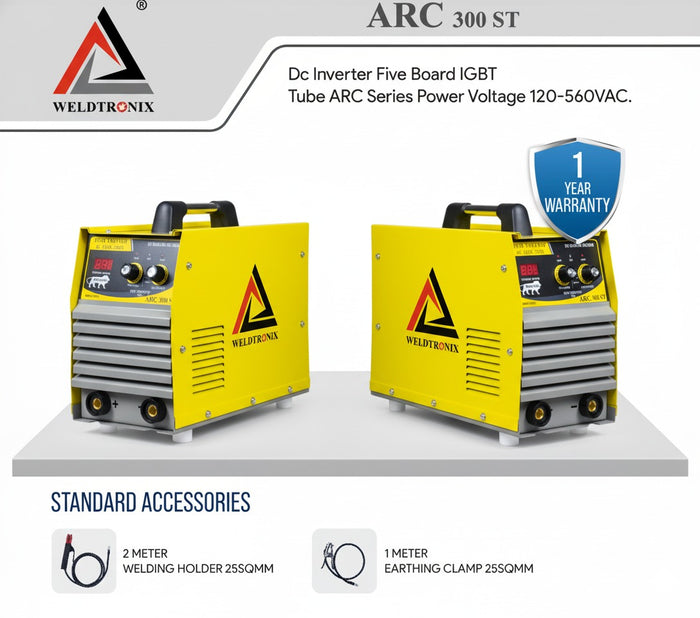

ARC 300 ST Welding Machine

Input Specifications:

• Rated input voltage: 220VAC-540VAC
• Input frequency: 50Hz
• Rated power at max: 4.8kVA
• Rated input current at max: 22A

Output Specifications:

• Output Current Range: 20-300A
• Rated output no load voltage: 75VDC
• Duty cycle: 100% @180A, 60% @300A
• Power factor: 0.93, Efficiency: 85%

Other: Insulation Class: F, Protection Class: IP21S, Weight: 9kg.
