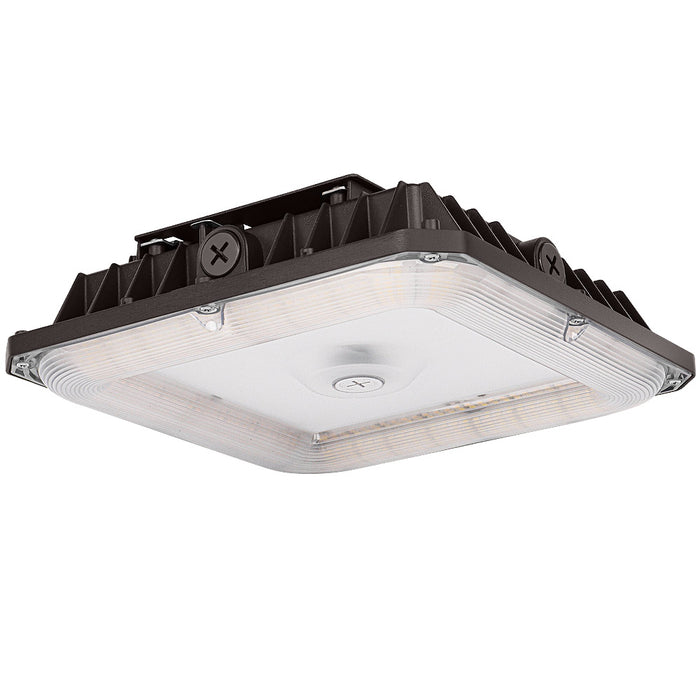

Konlite CP7 LED Canopy Light - 100/80/60W Selectable - Up to 14,093 LM - 3500/4000/5000K CCT - Dimmable - 120-277 - 320 Equal

Product Overview

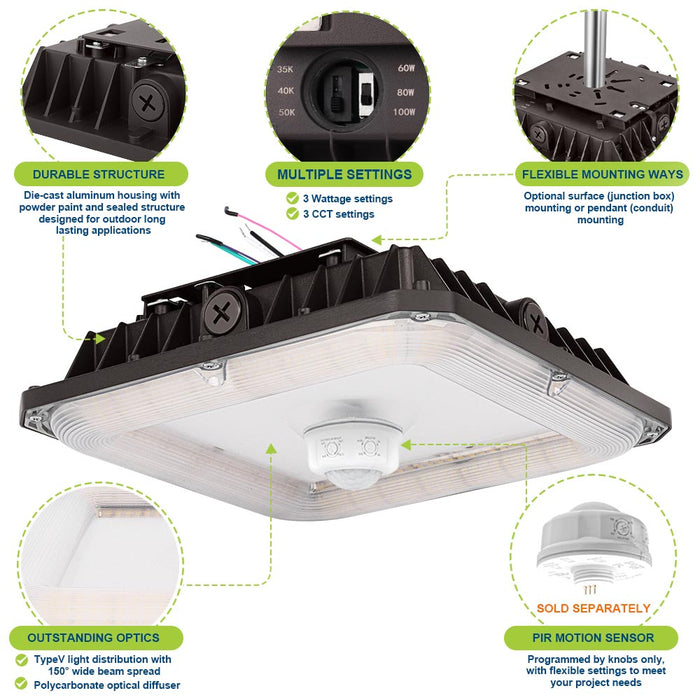

The Konlite CP7 Series LED Canopy Light delivers efficient, reliable illumination for covered outdoor and commercial ceiling-mounted spaces. Featuring a classic industrial design with modern LED technology, this versatile canopy fixture offers selectable wattage and color temperature settings, allowing users to customize light output and appearance for a variety of lighting requirements.

Built with a durable dark bronze die-cast aluminum housing, corrosion-resistant powder coating, and a sealed IP65-rated construction, the CP7 Series is designed for dependable performance in demanding environments.

Key Features

🔹 Selectable Wattage Options
Choose from 100W / 80W / 60W configurations to match light output and energy requirements to the application.

🔹 Selectable Color Temperature
Field-selectable 3500K, 4000K, and 5000K color temperatures provide flexibility for different lighting environments.

🔹 Durable Outdoor Construction
Features a die-cast aluminum housing with a harsh-environment-grade powder-coated finish for enhanced corrosion resistance.

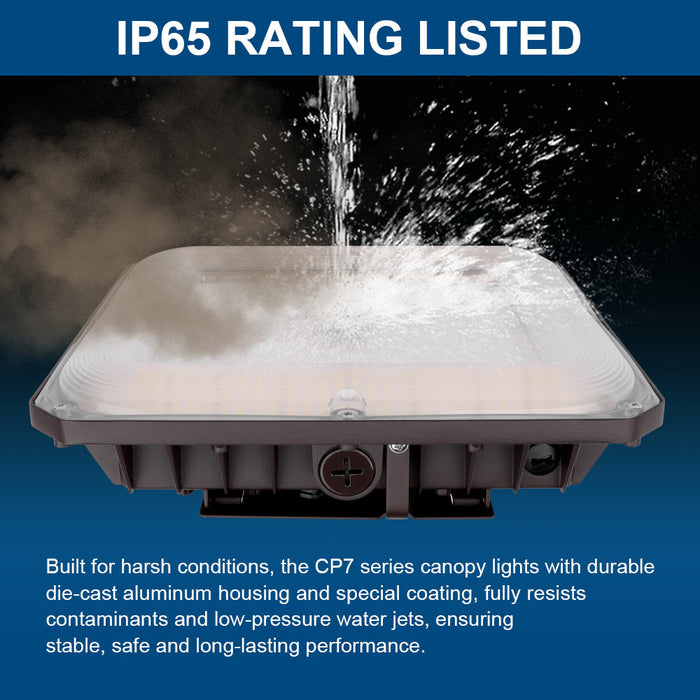

🔹 IP65-Rated Protection
The sealed housing helps protect internal components against moisture and environmental contaminants.

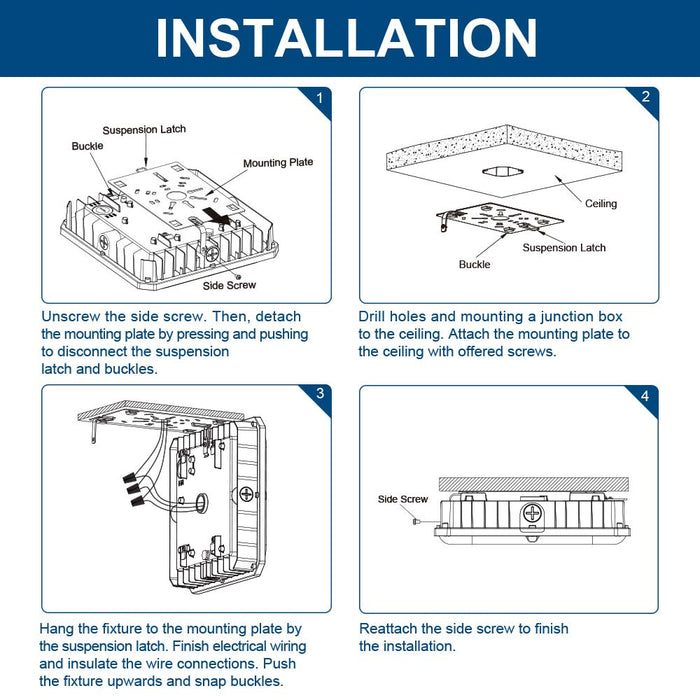

🔹 Flexible Mounting Options
Includes a quick mount plate for surface or ceiling mounting and supports pendant mounting via a 3/4-inch NPT conduit.

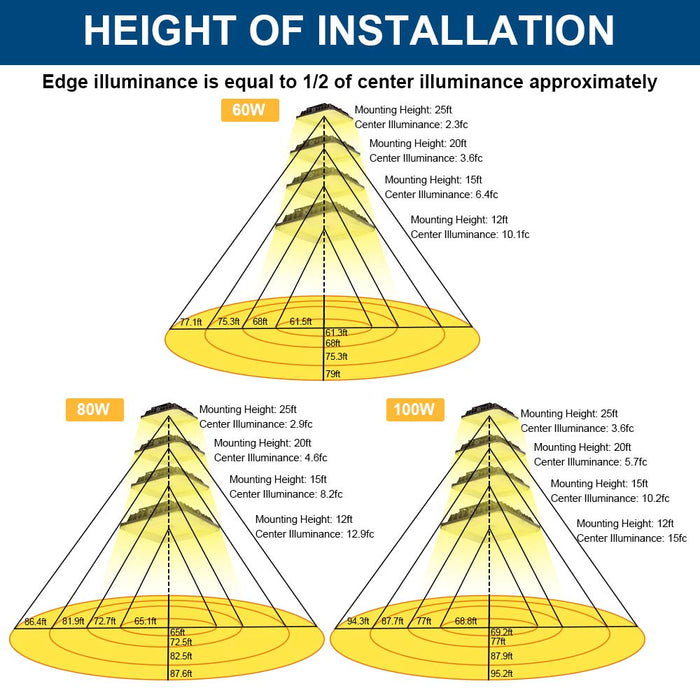

🔹 Wide 150° Beam Distribution
A wide beam spread provides broad, even illumination for ceiling-mounted applications.

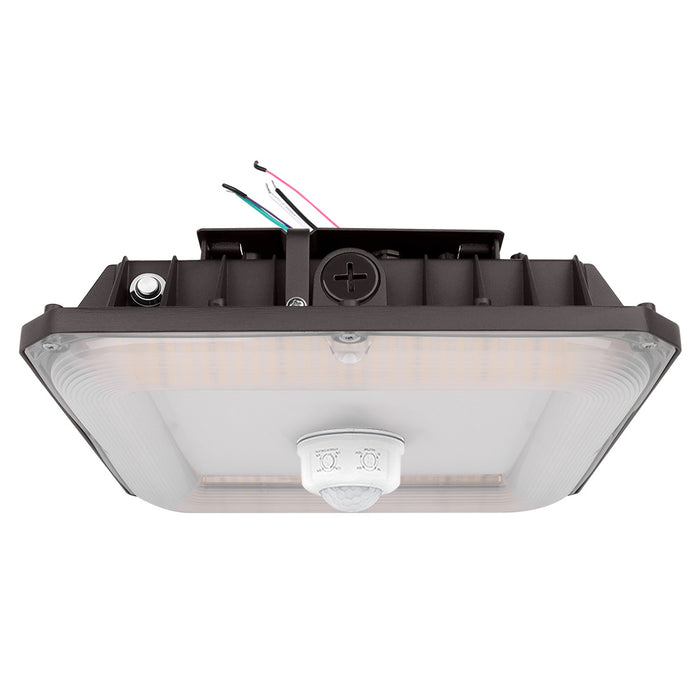

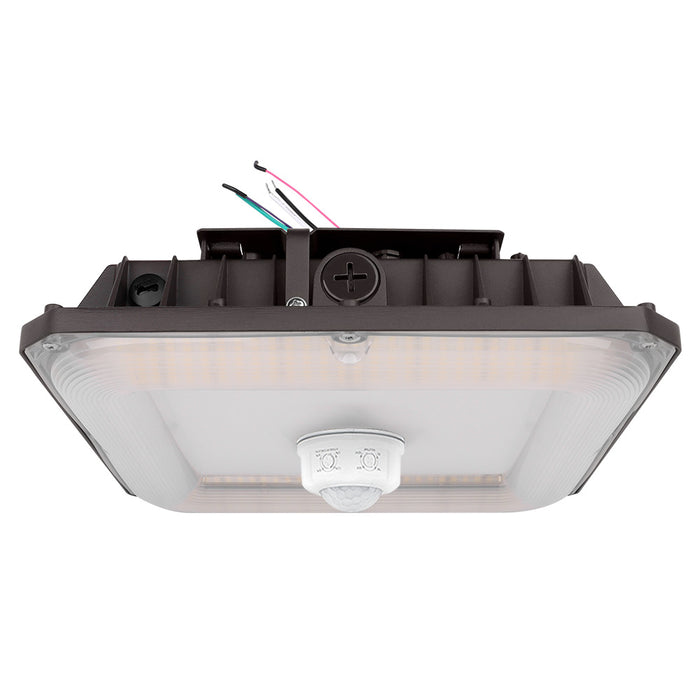

🔹 Optional PIR Motion Sensor
Available with an optional field-installable PIR Plug-N-Play motion sensor with Rotating Switch has built-in daylight sensing capability.

🔹 Dimmable LED Driver
Features 0–10V dimming compatibility for greater control over light output.

🔹 High-Efficiency LED Performance
Delivers up to 154 lm/W of efficacy, helping reduce energy consumption while providing powerful illumination.

🔹 Long-Lasting LED Technology
Premium LED chips and a 50,000+ hour L70 lifespan help reduce maintenance requirements and replacement costs.

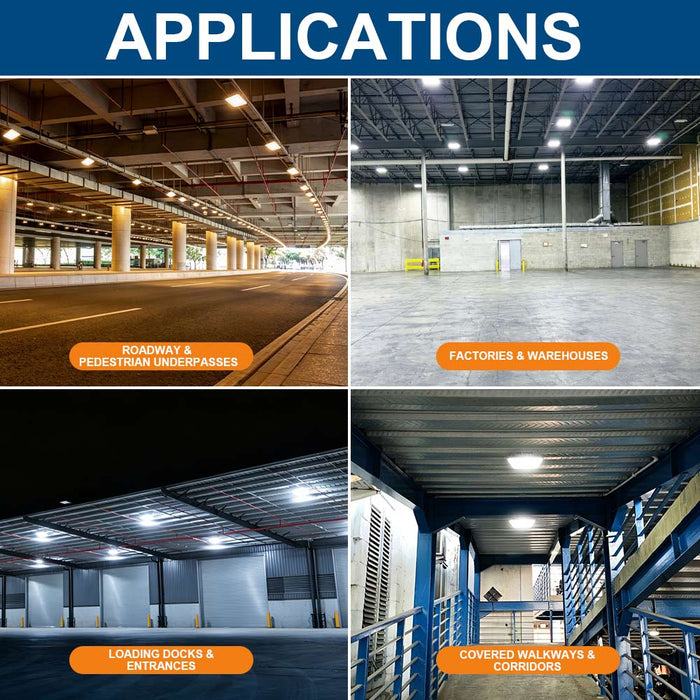

Applications
